Mainboard X99 TF - 3090 Ti - Single Core - Proxmox Installation Hang - Bios Settings

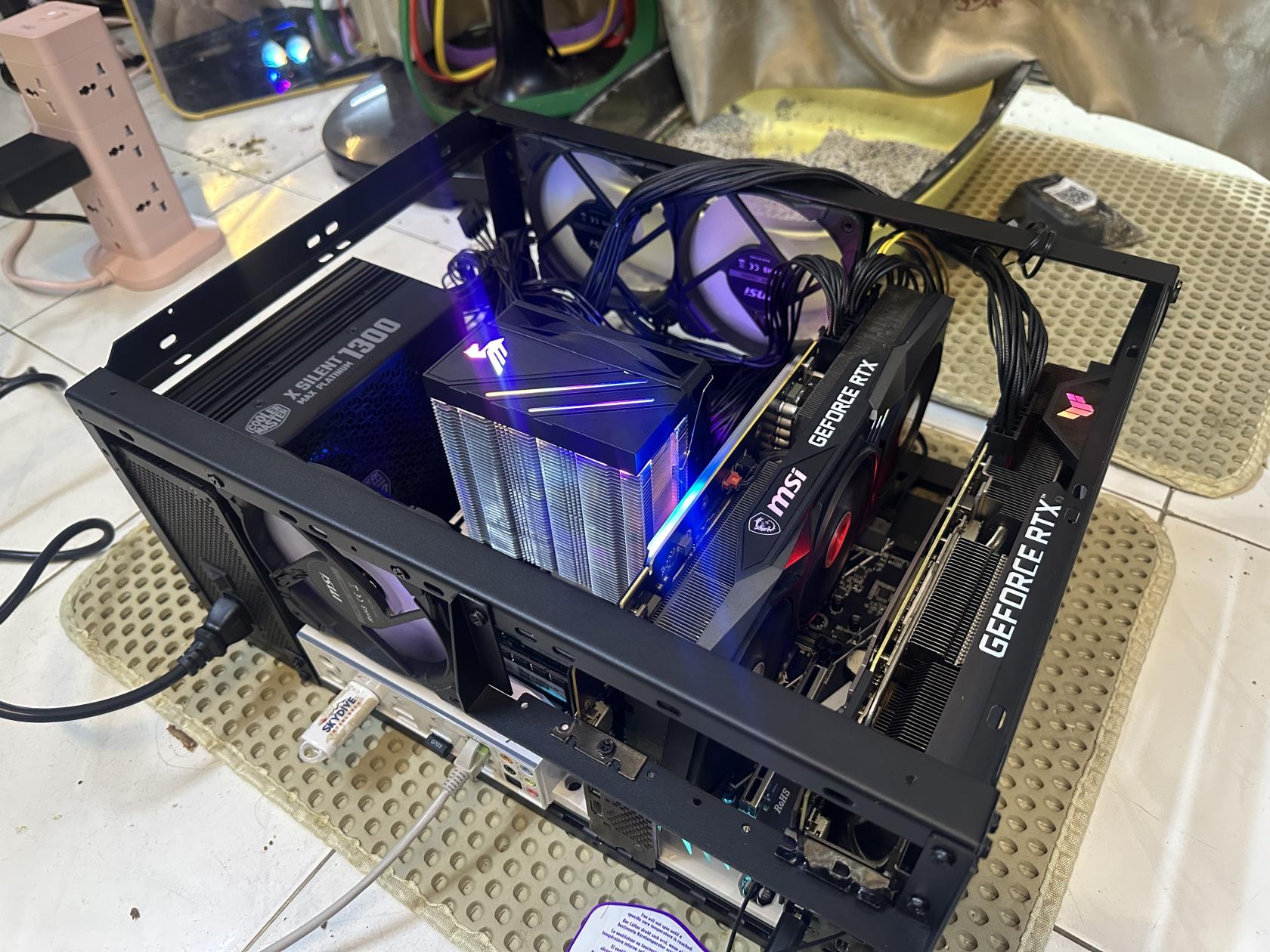

Bought My GPU Proxmox Sever with Chinese X99 TF Mainboard 2 and RTX 3090 24GB

26-07-09 13-29-30 6469.jpg


Host OS: Proxmox VE

Component Specification Warranty Price
Motherboard Huananzhi X99-TF (Brand New) 1 Year 2,850,000 VND
CPU Intel Xeon E5-2696 v4 (22 Cores / 44 Threads) 1 Year 1,600,000 VND
CPU Cooler Jonsbo Tower Air Cooler (4 Copper Heat Pipes) 1 Year 290,000 VND
Memory 128GB DDR4 ECC Registered (4 × 32GB Samsung, 2666MHz) 1 Year 14,000,000 VND
Power Supply Cooler Master V1300 Platinum V2 (1300W, 80+ Platinum) 5 Years 7,800,000 VND
Case Open-Air Test Bench / Open Frame Case — 800,000 VND
Cooling Fans 3 × MSI 120mm Fans — 360,000 VND
Graphics Cards 2 × NVIDIA GeForce RTX 3090 (24GB each) 3 Months 50,200,000 VND
TOTAL GPU Workstation 1 Year 77,900,000 VND

Hardware Summary

  • CPU: Intel Xeon E5-2696 v4 (22C / 44T)
  • Memory: 128GB ECC Registered DDR4-2666
  • GPU: 2 × NVIDIA RTX 3090 (48GB total VRAM)
  • PSU: 1300W 80+ Platinum
  • Platform: Huananzhi X99-TF
  • Hypervisor: Proxmox VE
  • Use Cases:
    • GPU Passthrough
    • AI/LLM Inference
    • Virtual Machines
    • Docker & Kubernetes
    • Development Environment
    • Homelab & Self-Hosting

Estimated Total Hardware Cost: ≈ 65.3 million VND (excluding storage devices).

ERROR when i setting up proxmox server with the mainboard x99 TF

Troubleshoot the error:

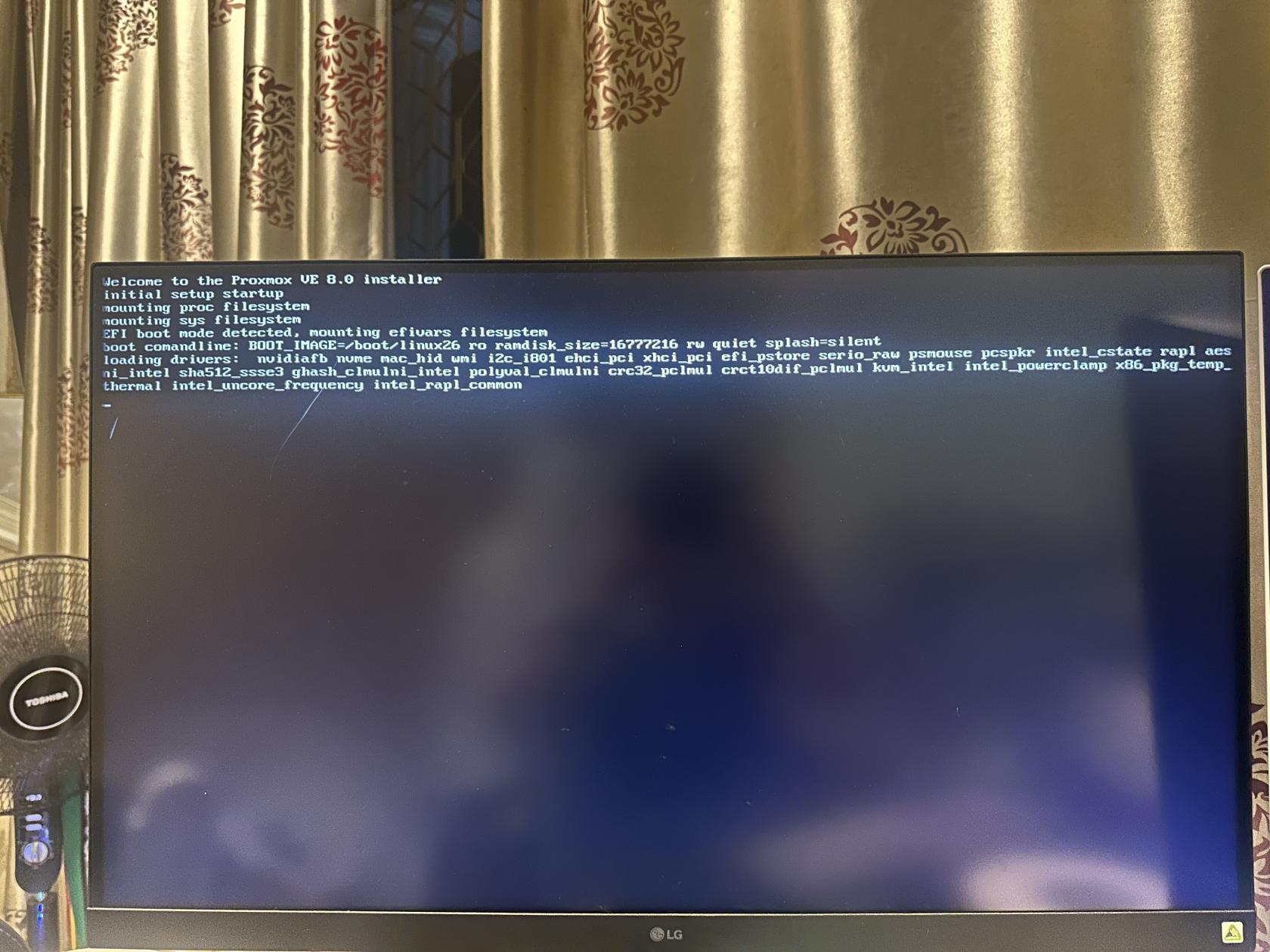

Welcome to the Proxmox VE 8.0 installer initial setup startup mounting proc filesystem mounting sys filesystem EFI boot mode detected, mounting efivars filesystem

boot commandline: BOOT_IMAGE=/boot/linux26 ro ramdisk_size=16777216 rw quiet splash=silent

loading drivers nvidiafb nvme mac_hid wmi i2c_i801 ehci_pci xhci_pci efi_pstore serio_raw psmouse pcspkr intel_cstate rapl aesni_intel sha512_ssse3 ghash_clmulni_intel polyval_clmulni crc32_pclmul crct10dif_pclmul kvm_intel intel_powerclamp x86_pkg_temp_thermal intel_uncore_frequency intel_rapl_common

26-07-09 00-10-47 6466.jpg

My Conclusion of this error is because i have 2 GPU setup and the proxmox server 8.2 require some gpu drivers to continue, thats why we need to try nomodeset. Oftenly, the mainboard will support vga on mainboard, but this one does not.

Good Info to do the fix:

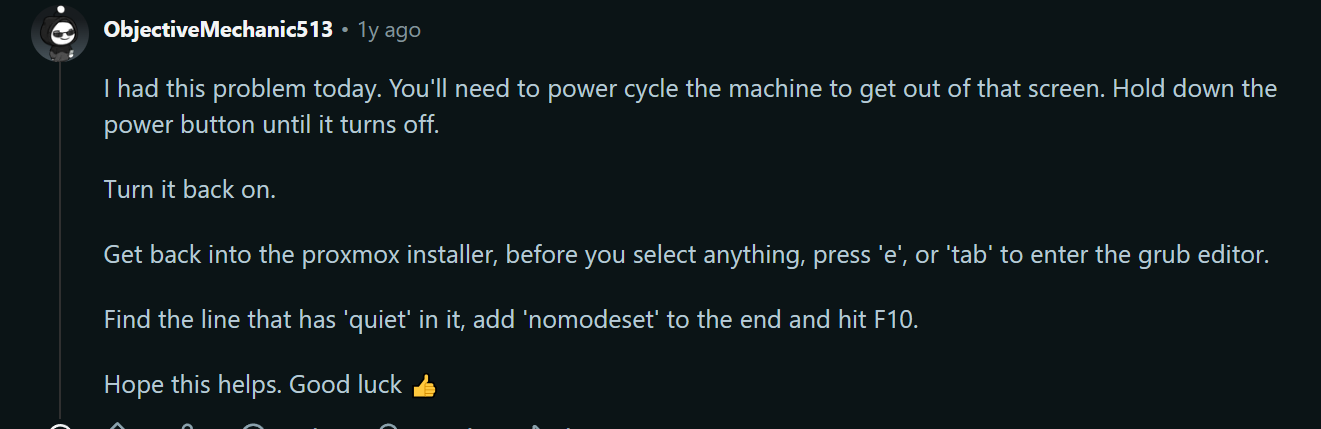

I had this problem today. You'll need to power cycle the machine to get out of that screen. Hold down the power button until it turns off. Turn it back on. Get back into the proxmox installer, before you select anything, press 'e', or 'tab' to enter the grub editor. Find the line that has 'quiet' in it, add 'nomodeset' to the end and hit F10. Hope this helps.

Ref: Nomodeset doc on Proxmox VE Administration Guide

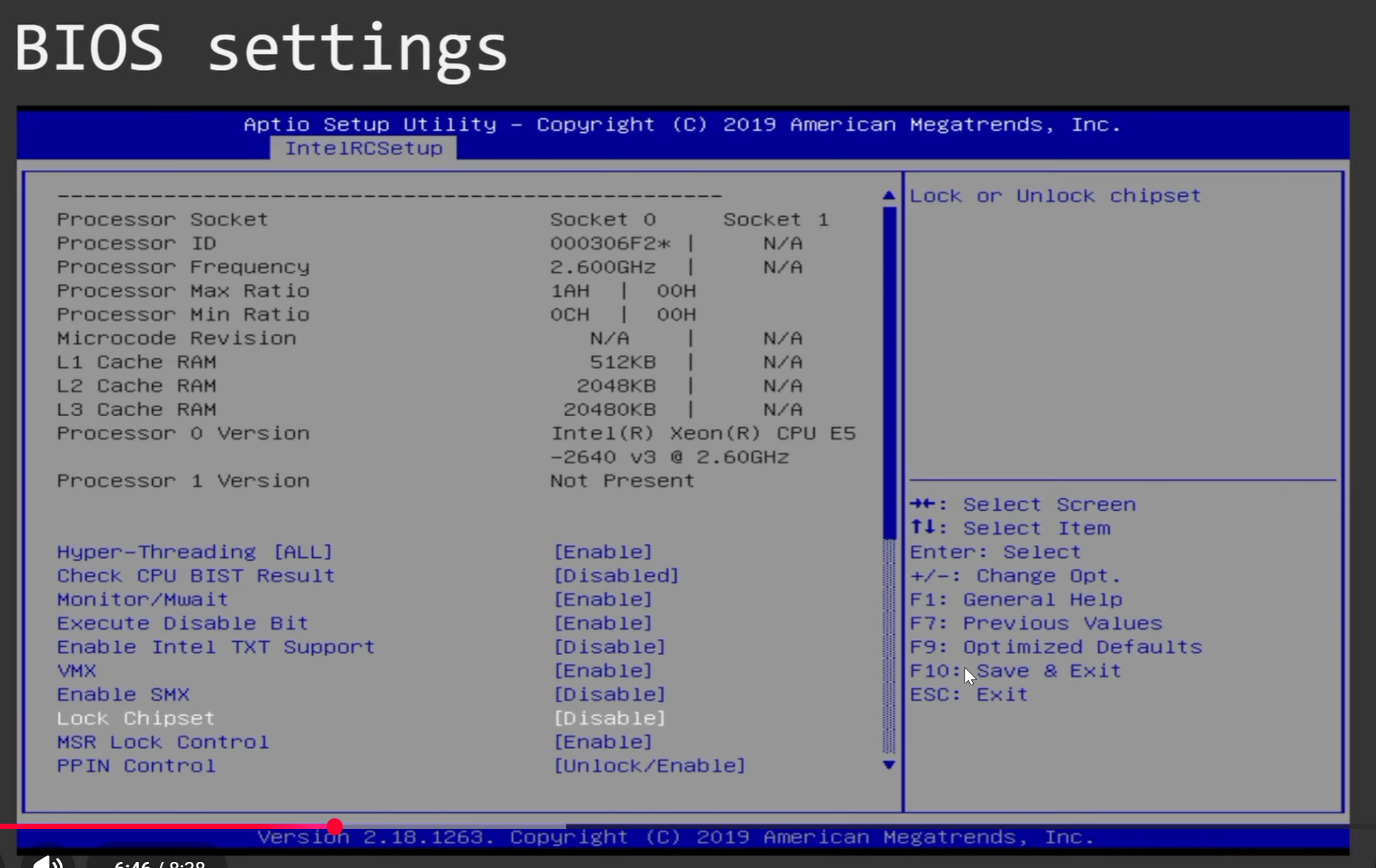

BIOS settings


Lock Chipset -> Disable
