Bambu Lab A1 Common Issues

Too low Z Offset / Wrong Temp for PETG

Problem with Z Offset + Temperature + Max Volumetric speed

Filament: PETG

Printing Speed Mode: Luminous
Z Offset: 0.06 / or could decrease by 0.05 if you want to test best fit for more filament
Temp: 265
Max Volumetric Speed: 12 mm3/s

;===== for Textured PEI Plate , lower the nozzle as the nozzle was touching topmost of the texture when homing ==
;curr_bed_type={curr_bed_type}
{if curr_bed_type=="Textured PEI Plate"}
G29.1 Z{0.06} ; for Textured PEI Plate
{endif}

Result: Good Print Surface

PLA

Z offset: 0.03

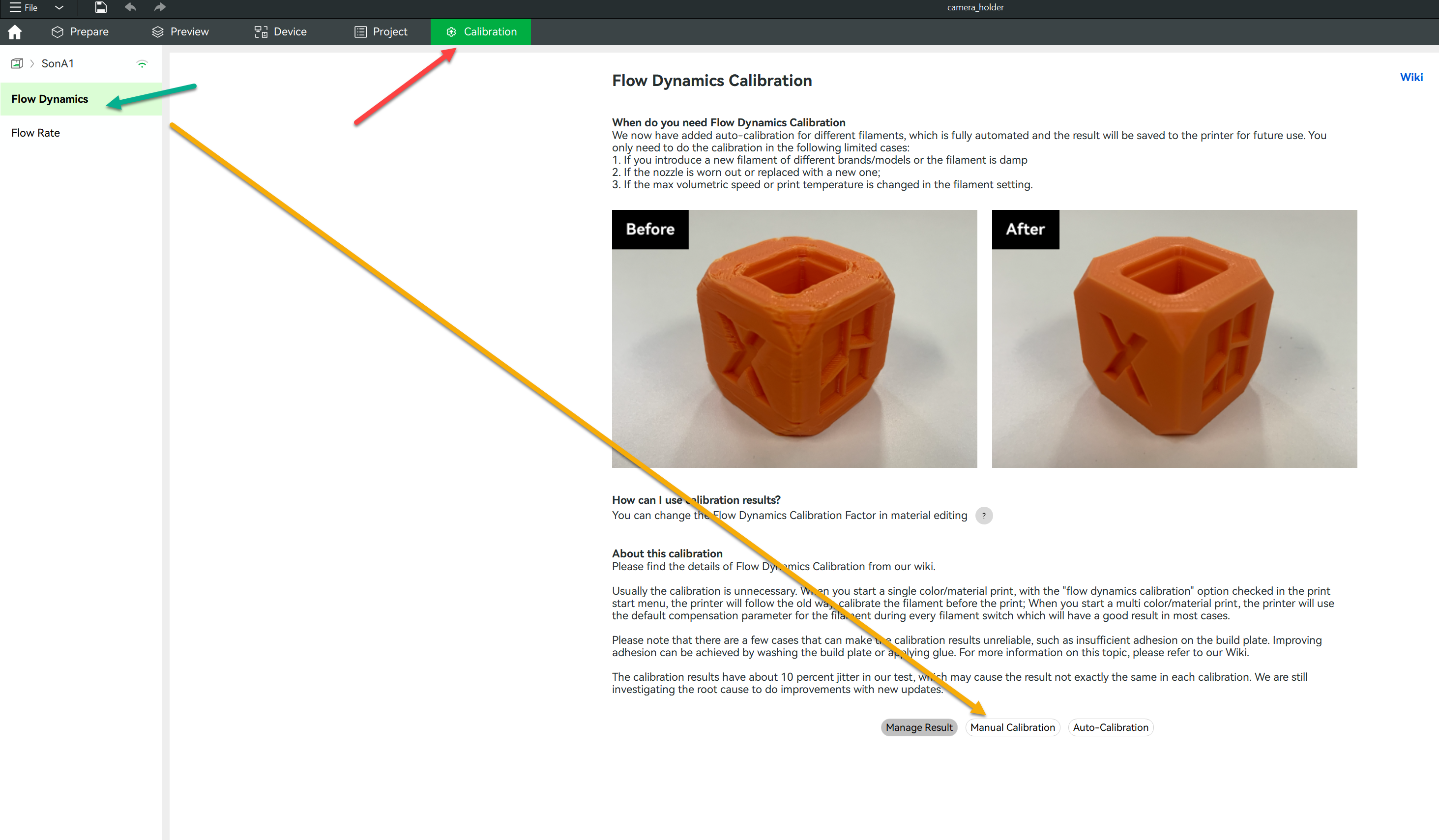

Calibration: Calibrate Your Filament Before Usage

Learn here

Change the K Value to : 0.03 and the value step: 0.001

Pick the best line which has good k factor for the printer

The above are two filament , one wood color filament is PLA on my P1S printer, and one gray color is PETG on A1 Printer.

It's hard to tell the differences between the lines so take a look carefully around 0.02 to 0.018 , you will see the differences between them and other lines. Once you've seen it, please take the value and fill in the Calibration Page on Bambu Studio , and give it a good brand name of the filament to record it and use it in the future.





After you've updated your filament k factor on the device, please proceed to the flow calibration.

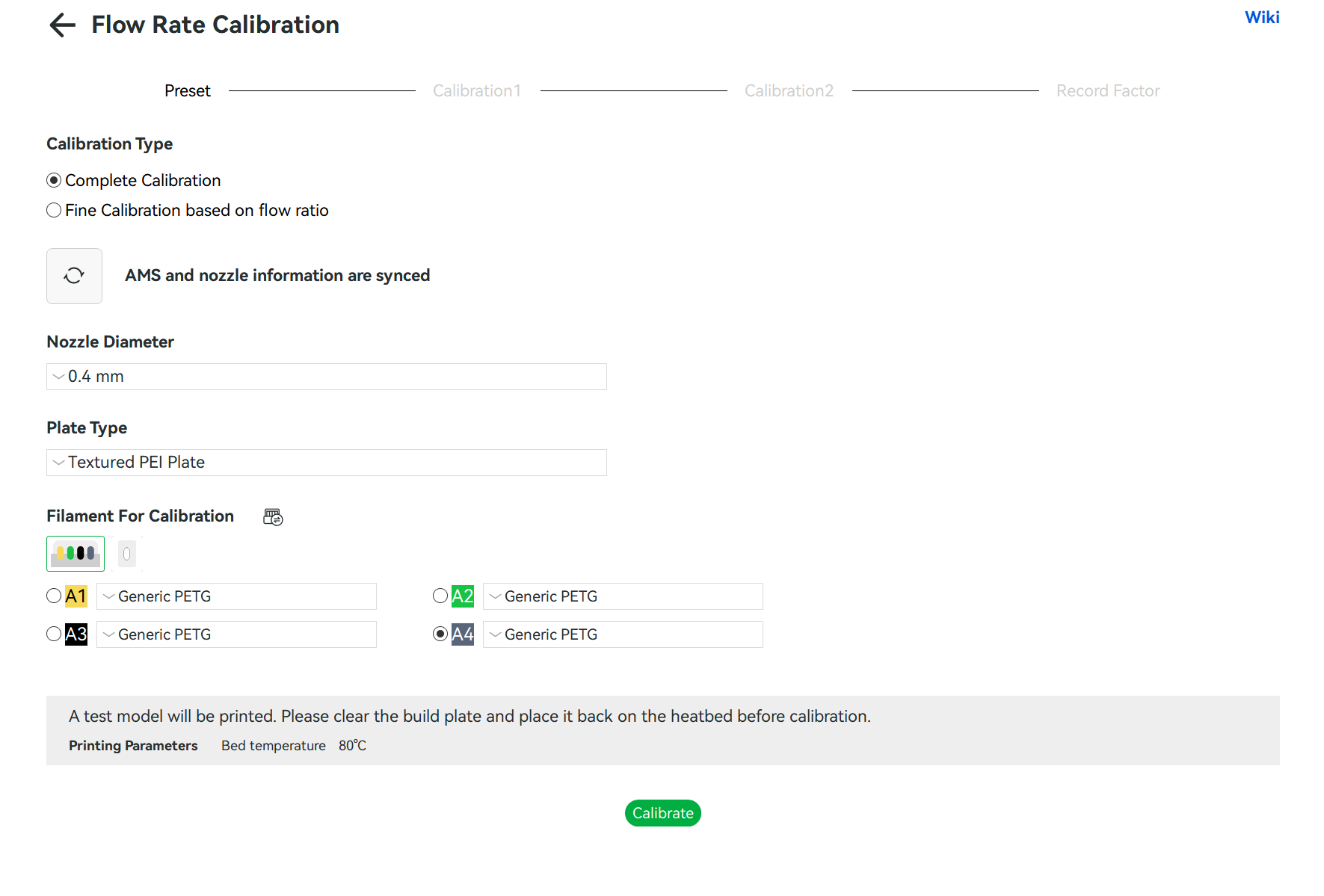

Same thing with the flow calibration:

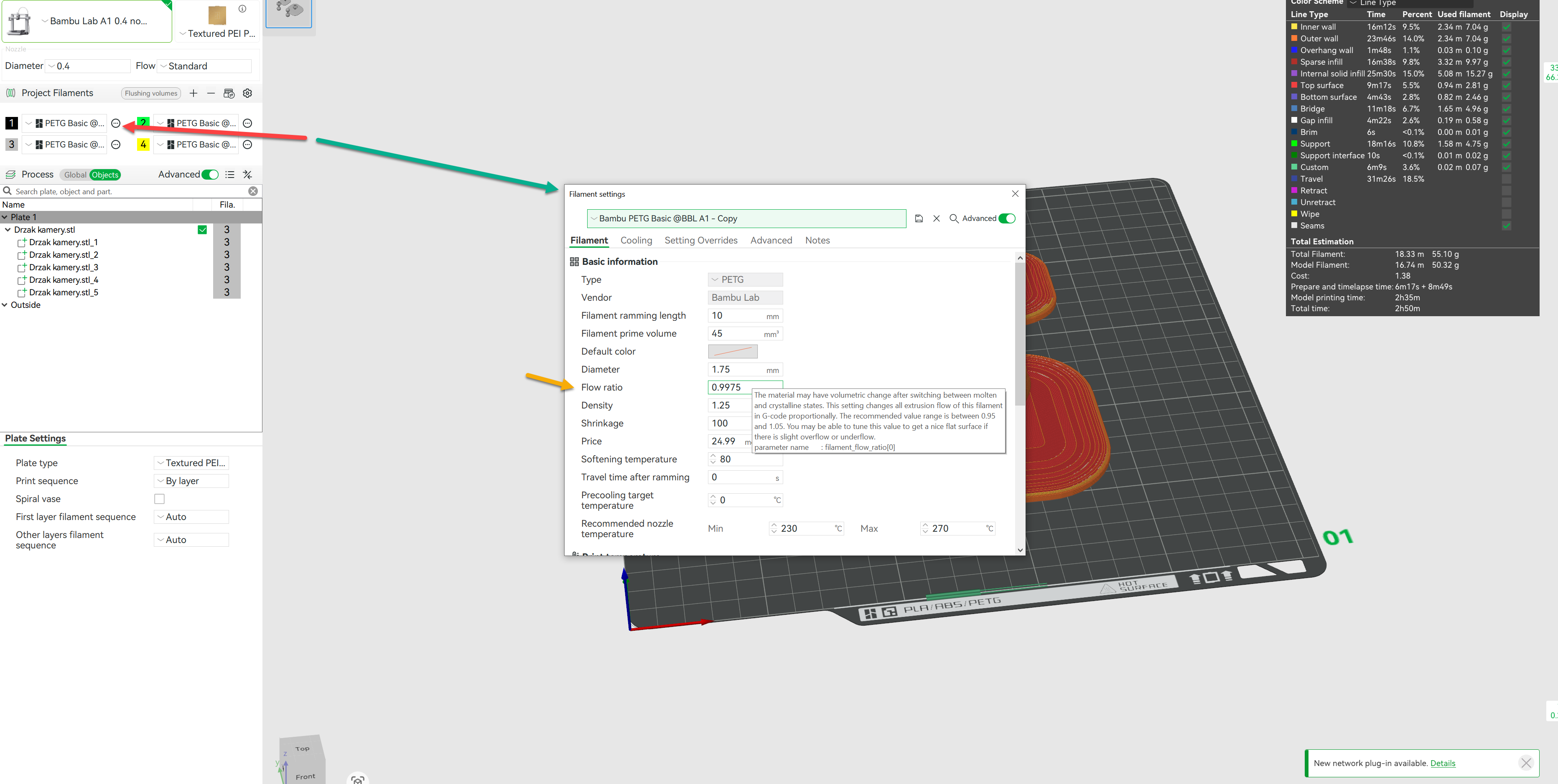

Adjust your flow ratio in the project filament and save it.
